Powered Flex
Flexible. Operator-Friendly. Field-Configurable Conveyance

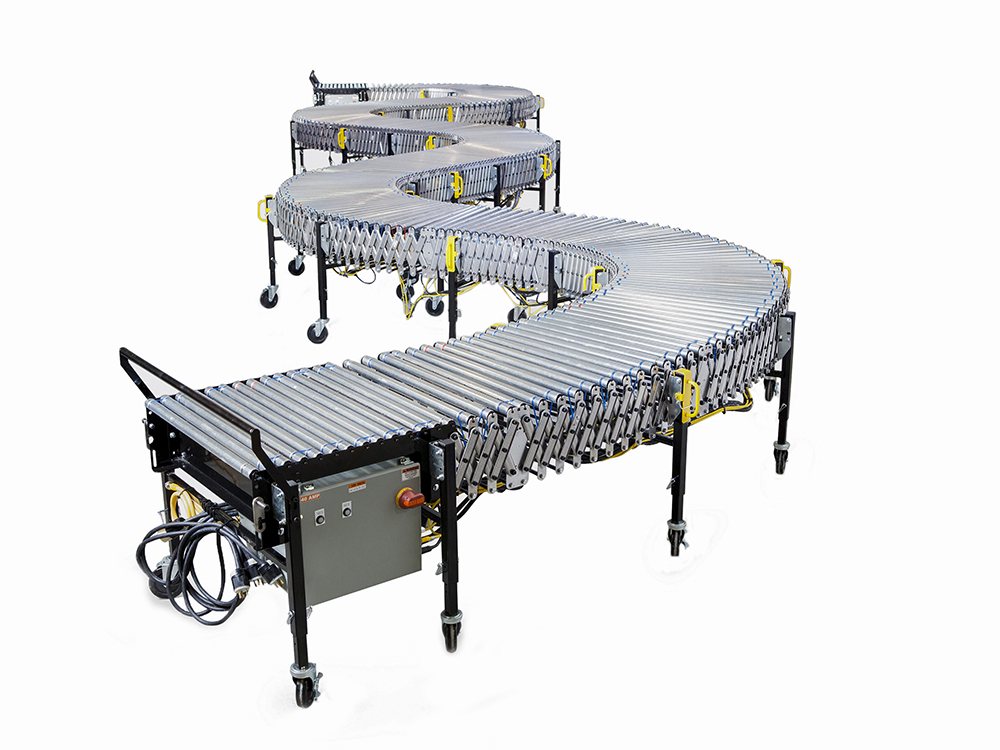

NorthAmCon’s Nor+ Powered Flex is designed for operations that require flexibility and ease of use. Utilizing 24VDC power, the expandable conveyor stretches or bends to fit available space, making it well-suited for truck loading and unloading areas, distribution centers, and portable assembly lines. Its modular design supports quick installation and straightforward maintenance, while operator-friendly controls simplify everyday use. Add-on accessories are available to enhance functionality, providing a practical solution for distribution, fulfillment, and manufacturing environments.
We offer standard conveyor and customize better than anyone.
+ Key Benefits
Reduced Electrical Infrastructure
passthrough power up to 120 feet
Fast Reconfiguration
for changing operational needs
Operator-Friendly Controls
that improve usability and reduce training
Options Pre-Programmed
for simple field modifications that enhance functionality
Safety-Ready Design
with optional E stops and control upgrades
+ Specifications
| Specification | Standard Values |
|---|---|
| Zone Capacity | Up to 100 lbs (50 lbs per linear foot) |
| Extended Length – Nominal | 40’ & 60’ |
| Bed Width (Overall Width) | 30” (42”) |
| Roller Centers | 3″ Standard, 4″ & 5″ Optional |
| Zone Length (Roller Centers) | 38” (3” & 4”) & 42” (5”) |
| Speed FPM | 60 – 150 (typical range) |
| Roller Diameter | 1.4” |
| Height (TOR) – Adjustable | 27” – 35”, with locking pin |
| Caster Size | 6” |
| Power Supply | Single Phase |
| Standard Color | Gloss Black – RAL 9005 |
+ The Next Generation of Powered Flex
Warehouse operations continue to evolve, and the equipment supporting them should as well. The Nor+ Powered Flex has undergone engineering improvements that simplify installation, streamline operations, and support future expansion. From passthrough power to enhanced operator controls, every update was designed to reduce complexity while increasing versatility.

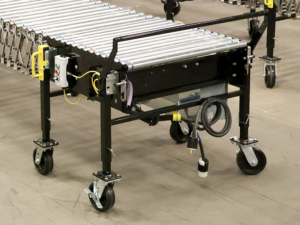

Simplified Power Distribution
The Nor+ Powered Flex V2 simplifies operation and storage by allowing multiple conveyors to connect in series using passthrough power. This standard feature allows the user to power up to 120 feet of conveyor from a single 110V 30A L5-30P power drop. Simply connect the passthrough power cables and the controls interface cables.
Cleaner Cable Management
Nor+ Powered Flex V2 simplifies cable management, while creating a cleaner and more organized solution. With fewer exposed cables and components, the system is easier to deploy, access, and maintain.

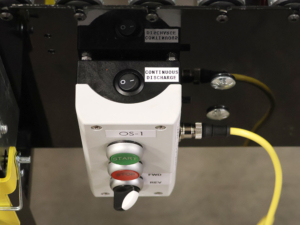

Convenient Operator Controls
Routine adjustments no longer require opening electrical enclosures or calling maintenance. Our new Powered Flex places key operating functions where they are needed most. Integrated operator stations provide direct access to start, stop, reverse, change speed, and engage continuous discharge. Make changes in seconds to keep product moving and minimize downtime.

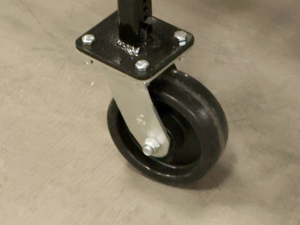

Improved Mobility
The Nor+ Powered Flex comes standard with 6-inch industrial casters, making it easier to move conveyor sections across uneven warehouse floors, dock plates, and expansion joints. Locking brakes are added throughout the length of the conveyor for additional control. Together, these features improve maneuverability, increase workplace flexibility, and provide stability when required.

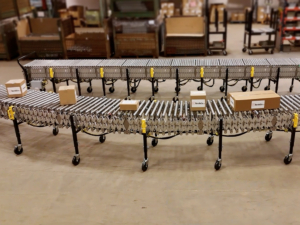

New Accumulation Benefits
Accumulation models of the Nor+ Powered Flex use Zero Pressure Accumulation (ZPA) for zone-controlled product flow. Each zone contains a sensor and motor that work together with a controller to communicate with adjacent zones and downstream equipment. During forward operation, product only advances when the next zone is clear. During reverse operation, the conveyor runs continuously in transportation mode until product reaches the Reverse Hold sensor. Reverse Hold is new feature that is standard on the V2 model.
The Nor+ Powered Flex V2 Accumulation model adds new functionality while lowering the total cost of ownership. Continuous Discharge is now enabled with a switch at the discharge operator station, allowing the conveyor to operate continuously like a transportation model when needed. In addition, each driver card controls multiple conveyor zones, reducing spare parts, simplifying maintenance, and lowering lifecycle costs.
Transportation That Adapts
Transportation models of the Nor+ Powered Flex provide continuous product flow without independent zone control. All conveyor zones run together in both the forward and reverse directions. This operating mode is ideal for moving product between processes where accumulation is not required.

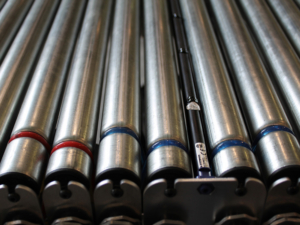

The Nor+ Powered Flex V2 Transportation model adds new functionality while reducing the cost of ownership. Optional plug-and-play photo eyes allow the Package Stop feature in the forward direction, or the Reverse Hold feature in the reverse direction. Standard infeed and outfeed communication cables allow the conveyors to exchange handshake signals with other conveyors and equipment. In addition, a single driver card now controls the entire conveyor, reducing replacement parts and simplifying maintenance.
Less hardware. More capability. Designed to scale with your operation.
+ Core Capabilities
Operator Friendly Design
Designed with the end user in mind, the Nor+ Flex simplifies day to day operation.
- Integrated speed control at the operator station provides immediate, intuitive access to conveyor speed adjustments.
- A standard continuous discharge switch allows operators to override a package stop when needed, keeping product flowing during peak demand.
- Clear, accessible controls reduce training time and improve operational efficiency.
Field Modifiable Architecture
The Nor+ Flex is engineered for quick, low complexity modifications directly in the field.
- Discharge zone package stops or reverse hold stops can be added to most models with minimal wiring, enabling rapid customization as workflow requirements evolve.
- Components are designed for plug and play integration, reducing downtime and technician labor.
- Ideal for facilities that need to scale or reconfigure frequently
Flexible Configuration
The Nor+ Powered Flex is built to adapt to your facility’s changing needs.
- Standard features include limited passthrough power, enabling a single 110VAC / 30 amp / L5 receptacle to power up to 120 feet of conveyance, reducing electrical infrastructure requirements.
- Modular sections allow quick layout changes without major rewiring or downtime.
Operational Safety & Control Enhancements
Enhance safety and control with optional add ons tailored to your environment.
- Emergency stop (E stop) stations
- Additional operator controls
These options help ensure compliance, improve safety, and support more complex operational workflows.
Nor+ Flex Assist
NorthAmCon’s Nor+ Flex Assist is a powered cart to aid the movement of Nor+ Flex conveyors. This device is a standalone unit and can be used to service multiple Nor+ flex conveyors at your dock doors. With forward and reverse controls, Nor+ Flex Assist is an ergonomic option designed with safety, comfort, and scalability in mind. Contact NorthAmCon for your trailer and dock door needs.
Features
- Integrates with Nor+ Powered Flex and other Nor+ Flex Conveyors
- Simple Forward/Reverse Controls
- Powered and Gravity Zone Options Available
- Can Be Used to Position Multiple Flex Conveyors
- Available Bed Widths: 24”, 30”, and 36”
- Durable Construction
Nor+ Flex Assist
+ Designed to adapt to real-world workflows—from loading docks to dynamic fulfillment lines
