Nor+ Heavy Duty
NorthAmCon’s Nor+ Heavy Duty conveyors combine high quality components with years of expertise to deliver uncompromising results. Building on our standard Nor+ line, utilizing our 24VDC technology or standard AC powered componentry, these modules feature a more robust design to handle larger products up to 3,000 Lbs.
When catalog sizing isn’t enough, our robust manufacturing capabilities, industry expertise, and reliable sourcing allows us to build custom solutions to your specifications.
We offer standard conveyor and customize better than anyone.
Features*
- AC or DC Powered Solutions Available
- Transportation, Accumulation, and Network Compatible
- Plug and Play Design for Easy Install and Maintenance
- Multiple Power Transmission and Control Options
- Heavy Duty Construction
- Load Capacity: Up to 3,000 Lbs
- Standard Roller Size: 2.5” Diameter
- Chain or Poly-V Driven
- ABEC Precision Bearings
- Typical Speed Range: 10 to 60 FPM
- Typical Effective Width: 15” to 67”
- Power Supply: Single and 3-Phase
- Standard Color: Dusty Gray (RAL 7037)
- Ask How Easy It Is to Customize!
*Not all features are available in all configurations. Consult sales for your specific application needs.
Nor+ HD Conveyors for Heavy Duty Product Handling

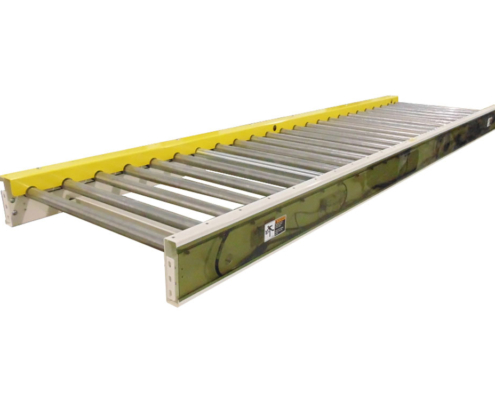

Nor+ HD Straight
NorthAmCon’s Nor+ HD Straight utilizes a robust design capable of handling of loads up
to 3,000 lbs and easily integrates with other Nor+ HD equipment. These heavy weight
conveyors operate on low-voltage, providing energy savings compared to high-voltage
systems. Modular components simplify installation and maintenance, allowing for easy
scalability and adaptability. The low-profile design enhances workplace safety and comfort,
making Nor+ HD Straight conveyors the preferred choice for pallet handling and heavy-duty
applications.
We offer standard conveyor and customize better than anyone.
Features
- Transportation, Accumulation, and Network Compatible
- Plug and Play Design for Easy Install and Maintenance
- Multiple Power Transmission and Control Options
- Heavy Duty Construction
- Poly-V Driven Zone Capacity: Up to 2,000 Lbs
- Chain Driven Zone Capacity: Up to 3,000 Lbs
- Power Transmission Options: Motorized Roller and Flat Motor
- Standard Lengths: 60” and 120”
- Zone Length: 30” and 60”
- Height (TOR): 12” to 30”
- Custom Colors Available to Match Your System
- Ask How Easy It Is to Customize!
Nor+ HD Straight

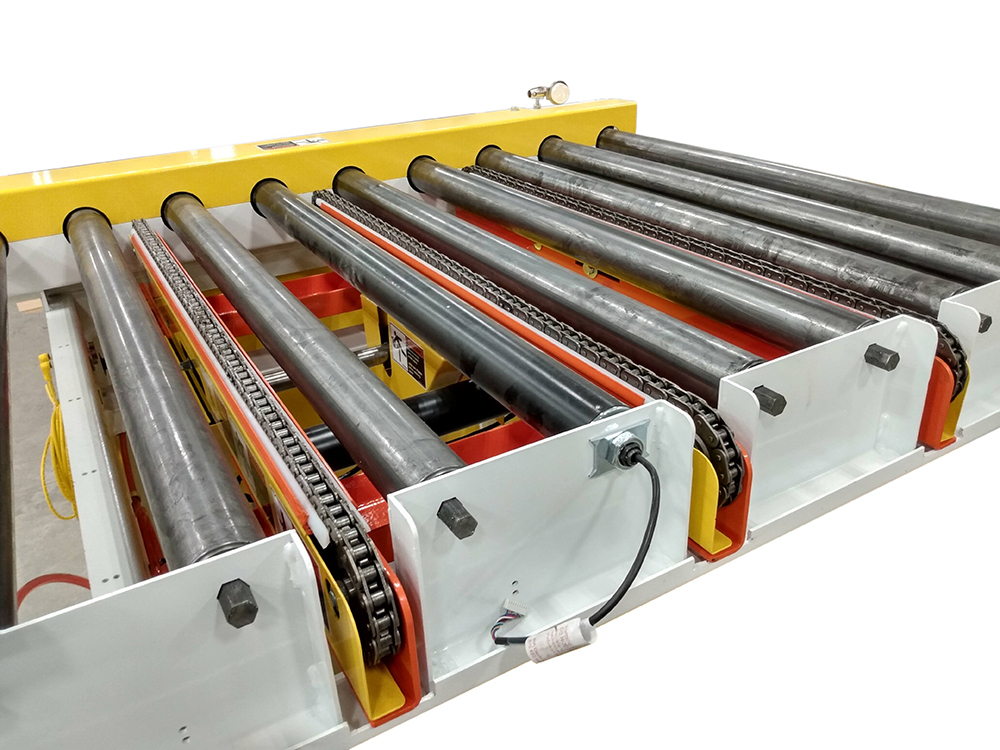

Nor+ HD Transfer
NorthAmCon’s Heavy-Duty Nor+ HD Transfer is purpose-built for demanding industrial
environments, delivering reliable performance for loads up to 3,000 lbs. This rugged
conveyor utilizes low-voltage to reduce power consumption compared to AC systems, while
maintaining the torque required for heavy product and pallet transfer. Engineered with runon-
demand zones, Nor+ HD Transfer provides an energy-efficient alternative for your heavyduty
and pallet handling needs. It also easily integrates with other Nor+ HD equipment.
We offer standard conveyor and customize better than anyone.
Features
- 90° Transfer
- Effective Width: Up to 67”
- Up to 5 Cycles/Minute
- AC or DC Powered Options Available
- Actuation: Electric Standard, Pneumatic Available
- Belt and Chain Drive Options
- Heavy Duty Construction
- Multiple Accessories Available
- Easily Integrates with Nor+ HD Conveyor Systems
- Custom Colors Available to Match Your System
- Ask How Easy It Is to Customize!
Nor+ HD Transfer
Nor+ HD Load/Unload
NorthAmCon’s Nor+ HD Load/Unload is specifically designed for high-impact environments.
Robust fork deflectors shield critical components from accidental impact from fork trucks
in load and unload areas. This improves durability, reduces maintenance downtime, and
supports safer, more efficient loading and unloading processes throughout the conveyor
system. Nor+ HD Load/Unload easily integrates with other Nor+ HD equipment.
We offer standard conveyor and customize better than anyone.
Features
- Optional Hilo and Fork Truck Accessible Frame Cutouts
- Side or Front Entry Available
- Heavy Duty Construction
- Poly-V Driven Zone Capacity: Up to 2,000 Lbs
- Chain Driven Zone Capacity: Up to 3,000 Lbs
- Easily Integrates with Other Nor+ HD Equipment
- Custom Colors Available to Match Your System
- Ask How Easy It Is to Customize!
Nor+ HD Load/Unload
