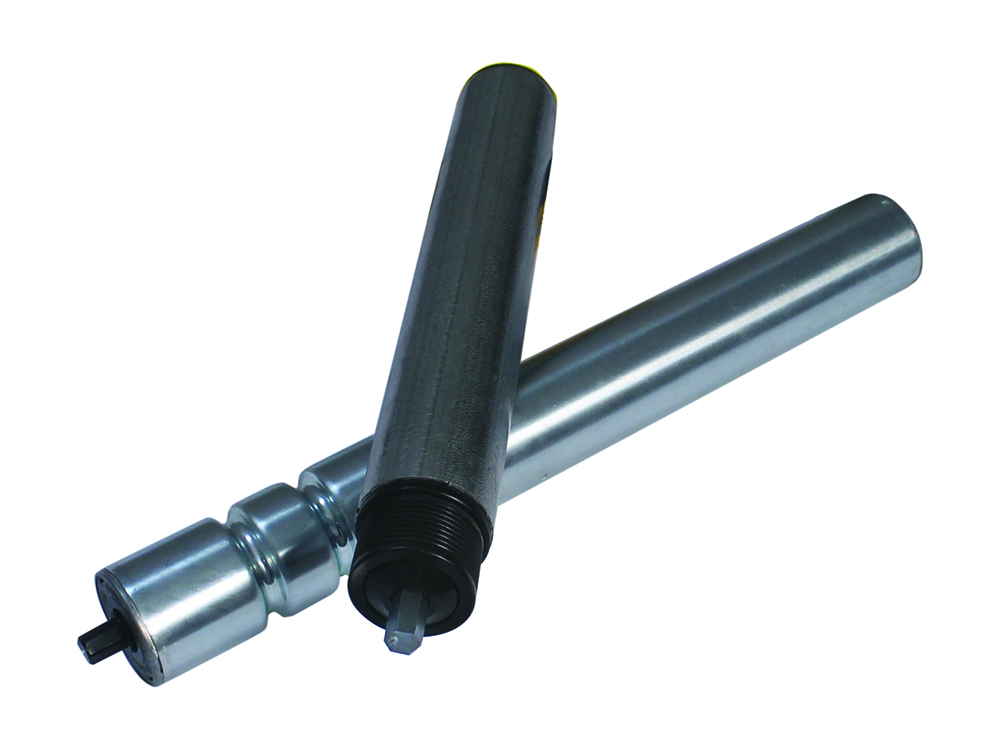

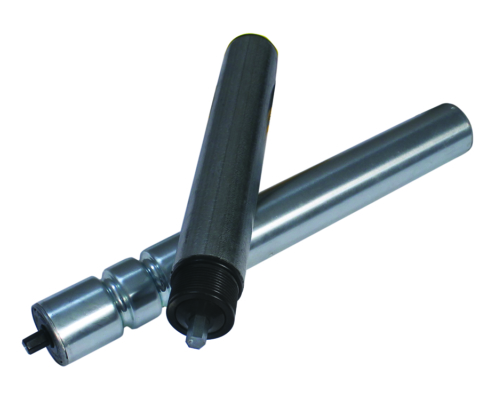

Idler Rollers
NorthAmCon offers a range of idler roller components to support and enhance 24VDC conveyor systems. With additional options such as spring-loaded for quick replacement, or alternative tube finishes. From non-powered zones, to load support, and power transmission. We work with leading manufacturers and trusted assembly partners to provide the best value for jobs of any size. We are confident that we have idler rollers suitable for your new project or retrofit needs.
Features
- Diameters: 1.4” with 5/16” hex shaft, 1.9” with 7/16” hex shaft, and 2.5” with 11/16” hex shaft
- Spring-loaded shafts standard with multiple retention options available
- Stocked Between Frames: 18”, 24”, and 30”
- Between Frames Range: 12” – 60”**
- Mild steel, galvanized and stainless-steel tube options
- Drive Options Available:
- Deep, narrow, and wide o-ring groove
- Poly-ribbed end cap
- Sprocket drive for 40, 50, and 60 series chain**
*Not all features are available for all configurations. Consult sales for your specific application needs.
**Additional sizes and options available. Consult sales for full offering.
Idler Rollers for New Builds or Retrofit Replacements
